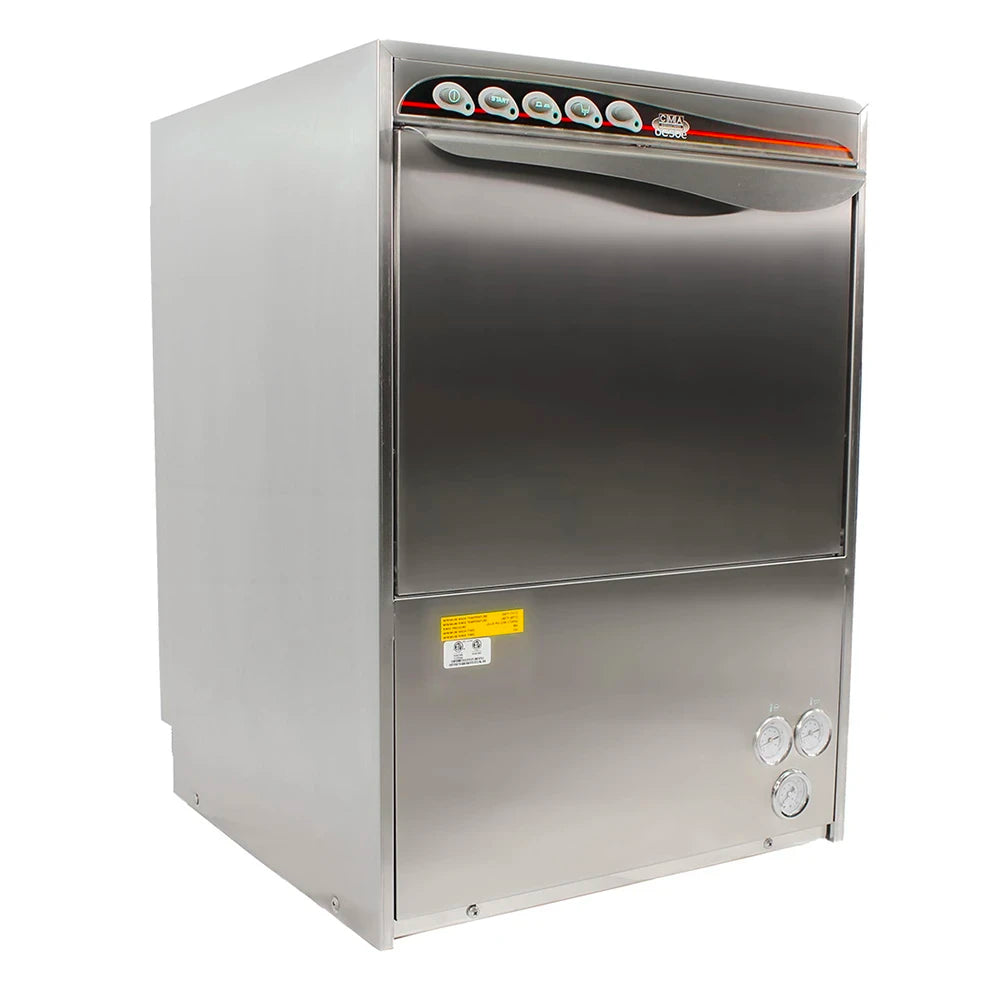

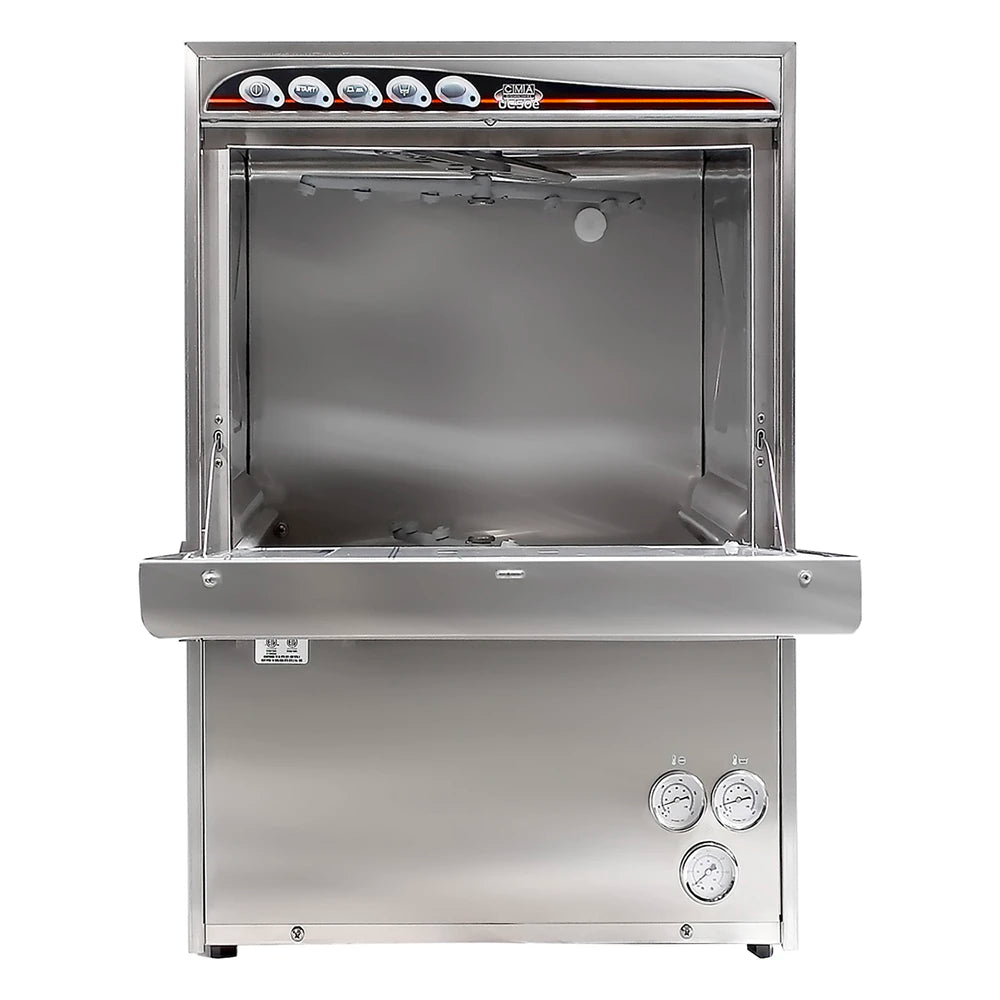

The CMA UC50E high-temp undercounter dishwasher can wash up to 30 racks per hour. The cycle is fully automatic for ease of use. The built-in detergent and rinse chemical pumps also make the warewasher easy to operate. The triple filtering protection system captures excess soil and debris, preventing them from recirculating over the dishes. The pump drain allows for multiple installation applications, including elevated drains. The door and water level safety switches, plus booster thermostat, give you optimal performance and safety.
The double skin stainless steel provides consistent heating and quiet operation. The operator-friendly, removable, stainless steel wash and rinse arms allow for easy cleaning. The stainless steel safety filters protect the washing pump to prevent corrosion and damage. The stainless steel molded rack supports, polished stainless steel surfaces and tanks with rounded corners further provide the user with easy cleaning. Rounded corners in the dishmachine make cleaning easier. Top-mounted controls on the CMA UC50E high-temp undercounter dishwasher are easy to read and use.
Product Details
- Washes up to 30 racks per hr.
- Cycle is fully automatic for easy operation
- Built-in detergent and rinse chemical pumps
- Pump drain gives you man installation options; no floor drain is required
- Safety Temp feature ensures the sanitizing rinse is 180 degrees F each cycle
- 6 kW wash tank heater
- Double skin stainless steel provides consistent heating and quiet operation
- Uses 0.8 gal. of water per rack
- Door and water level safety switches
- Booster safety thermostat
- Stainless steel safety filters protect the wash pump
- Rounded corners make cleaning easier
- Wash and rinse arms are easily removable for cleaning or replacing
- Triple filtering protection system collects excess soil and debris to prevent it from recirculating over dishes
- Top-mounted controls are easy to use and read
Dimensions & Utilities
- 237⁄16 in. W x 24 in. D x 335⁄8 in. H
- 3⁄4 HP, 2.7-6.53 kW, 28 A
- 208 V/60 Hz/1 ph
CMA Dishmachines UC50E Specifications
| Spec Attribute | Spec Value |
|---|
| Manufacturer | CMA Dishmachines |
| Depth (in) | 24 |
| Design | Rack |
| Drain Type | Pump |
| For Use With | Dish and Glass |
| Height (in) | 33.31 |
| Hertz | 60 |
| Racks per Hour | 30 |
| Special Features | Built in Booster |
| Special Features | Low Water Usage |
| Special Features | Dual Wash Arms |
| Type | High Temp |
| Voltage | 208 |
| Width (in) | 23.44 |
| Glasses per hour | 1080 |
| Phase | 1 |
| Product | Dishwashers |
| Product Type | Dishwashing Equipment & Supplies |
| Cycle Period | 2 min |
| Water Inlet (in) | 3/4 |
| Weight | 234.00 |
Spec Sheet
